Speidel Variable Capacity Tanks



Speidel variable capacity tanks provide some of the best quality products, with  the features and options that professional users require.



 All Speidel variable capacity tanks feature:

  • An unmatched 25-year warranty. If 5 generations of manufacturing experience are  not enough, the warranty ensures your tank will have a very long useful life.
  • "2R" rated interior finish. Not just a random specification, this means that the surface is so smooth that contaminants and tartrate deposits have a hardtime sticking to the stainless steel.  2R goes beyond highly polished, the metal is smoother and stronger at a molecular  level.
  • High quality robotic laser welds for strong and smooth seams.
  • Conical bottoms with front facing "pocket drains" on tanks with   legs.  Allows for full emptying of tanks and is easy to clean.
  • "Tri-Clamp (TC) fittings come on larger tanks. Smaller tanks have 1/2" Stainless Ball Valves.
  • Strong white rubber air gaskets for complete sealing with no leaks.  "C" shaped channels gives good contact between the tanks and the lid, and do not have seams where air can pass through.
  • Available in multiple configurations and styles for every application.
  • Please Note: TC valves not included. Please see  the bottom of the page for pricing on TC valves and fittings.




PLEASE NOTE:

Unfortunately Speidel Tanks do not include free shipping to the shop. For all Speidel, and only Speidel tanks, there is a 10% shipping cost to the shop. We apologize for the inconvenience.

Flat bottomed tanks

 All tanks come with:

  • Floating lid and Heavy Duty White Rubber Gasket
  • 1/2" Ball Valve
  • 1/2" Thermometer Port (comes plugged, thermometer sold separately)
  • Pump for the gasket

EXTRA PUMP $45, DIAL HEAD THERMOMETER ( 3'' Face x 2" Probe) $19.95


  GER110VF $450- 110 LITER (29 GALLON)

  • Diameter-44cm
  • Height-76.5cm
  • 25 lbs
  • Extra gasket-$74.95

GER220VF $550 - 220 LITER (58 GALLON)

  • Diameter-55cm
  • Height-99.9cm
  • 33lbs
  • Extra gasket-$74.95

GER290VF $660 - 290 LITER (77 GALLON)

  • Diameter-63.9cm
  • Height-99.9cm
  • 72 lbs
  • Extra gasket-$85.95

GER650VF  $1350- 650LITER (172GALLON)

  • Diameter-85cm
  • Height-132.8cm
  • 75 lbs
  • Extra gasket-$89.95
  •  Reinforced Racking valve with 1.5" TRI-CLAMP connection




0

Speidel legged V.C.

Tanks come with everything included with the flat bottomed tanks as well as:

  •  Reinforced Racking valve with 1.5" TRI-CLAMP  connection (Valve sold seperatly)
  •  Thermometer and Thermowell Combo included
  •  Capped Port for Sample Valve (Sample Valve sold separately)

TRI-CLAM FITTINGS LISTED BELOW


 GER300V $1200- 300 LITER (79 GALLON)

  • Diameter-63cm
  • Height-134.8cm
  • 53 lbs
  • Extra gasket-$85.95

 GER530V $1650- 530 LITER (140 GALLON)

  • Diameter-83cm
  • Height-136.1cm
  • 62l bs
  • Extra gasket-$89.95

 GER110VF $450- 110 LITER (29 GALLON)

  • Diameter-44cm
  • Height-76.5cm
  • 25 lbs
  • Extra gasket-$74.95
  • Extra gasket-$74.95

0

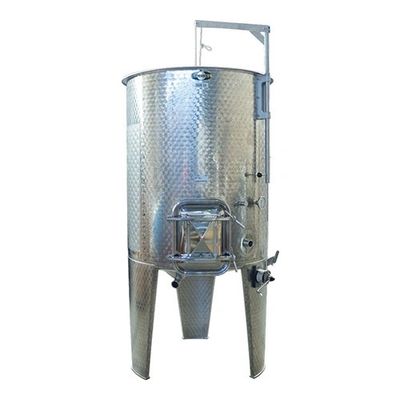

  GER675V $2900- 675 LITER (178 GALLON)

  • Manway
  • Max Coverage Jacket: 1.1 m² (4x 1" MPT connections)
  • Complete Drainage Dish Bottom
  • Sight Gauge Reinforced Racking valve
  • Diameter-90cm
  • Height-162cm
  • 125 lbs
  • Extra gasket-$89.95
  • LIFTING ARM NOT INCLUDES WITH THE 675 LITER

GER1100V $4600- 1100 LITER (290 GALLON)

  • Manway
  • Max Coverage Jacket: 1.1 m² (4x 1" MPT connections)
  • Complete Drainage Dish Bottom
  • Sight Gauge Reinforced Racking valve
  • Diameter-108cm
  • Height-201cm
  • 150 lbs
  • Extra gasket-$94.95

Please note

 This picture does not cover the complete feature set, as it does not display the Cooling Jacket.

Tri-clamp fitting and other accessories

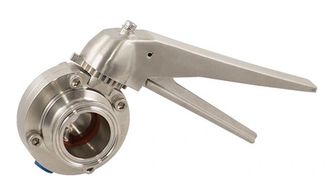

1.5" Tri-Clamp Butterfly Valve

 This is a compact design with a stainless handle. Made from 304  stainless steel with a 7 position handle. The handle can be taken off  and rotated 180 Degrees for either right or left hand use.  $79.95

1.5" Tri-Clamp

 Tri-clamp for 1-1/2 inch TC fittings.  $8.95

1.5" Tri-Clamp Gasket

 Rubber gasket for 1-1/2 inch TC fittings.  $1.25

Dial Head Thermometer

 These thermometers have a 3" Face, and a 1/2" MPT on the back that fits perfectly in your port. Available in either 2.5" or 6" probes. $19.95

Heavy Duty Replacement Gaskets

Replacement gasket for your V.C. lid. Please see the description of your tank above for pricing.

Need another part?

Just ask! We can get a variety of other parts and sizes. Just give us a call and tell us what you want and we will see if we can get it.
